Getting Started

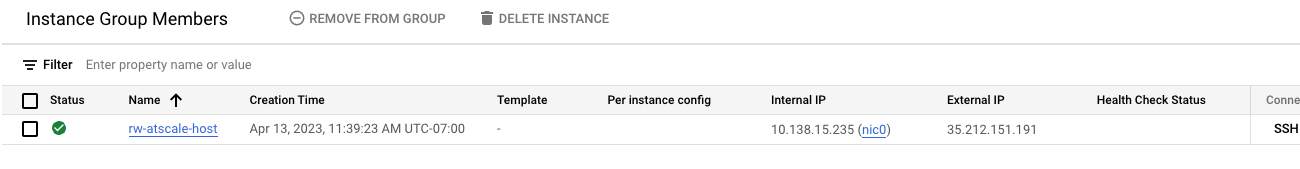

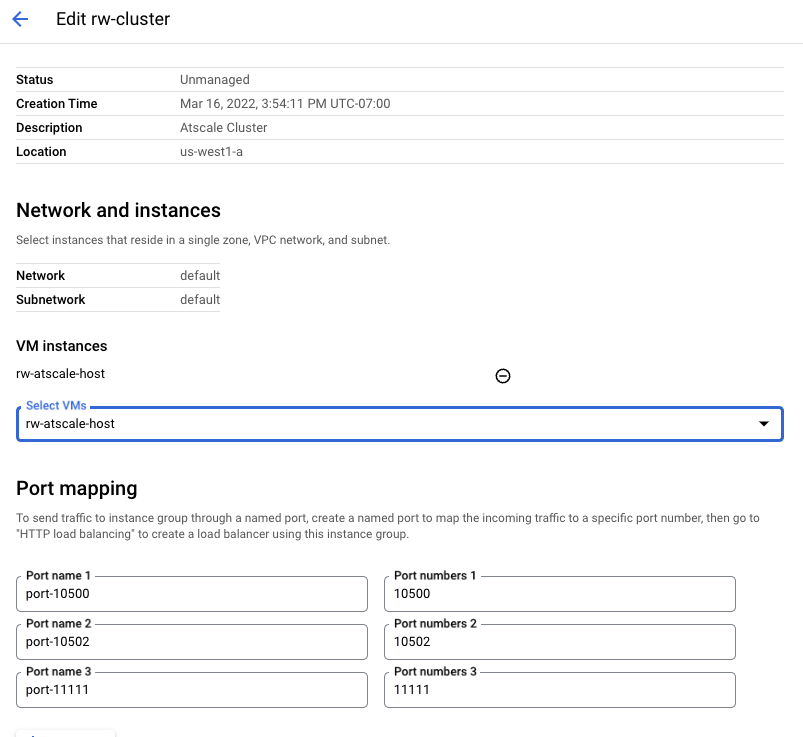

Create a new virtual machine instance and an instance group:

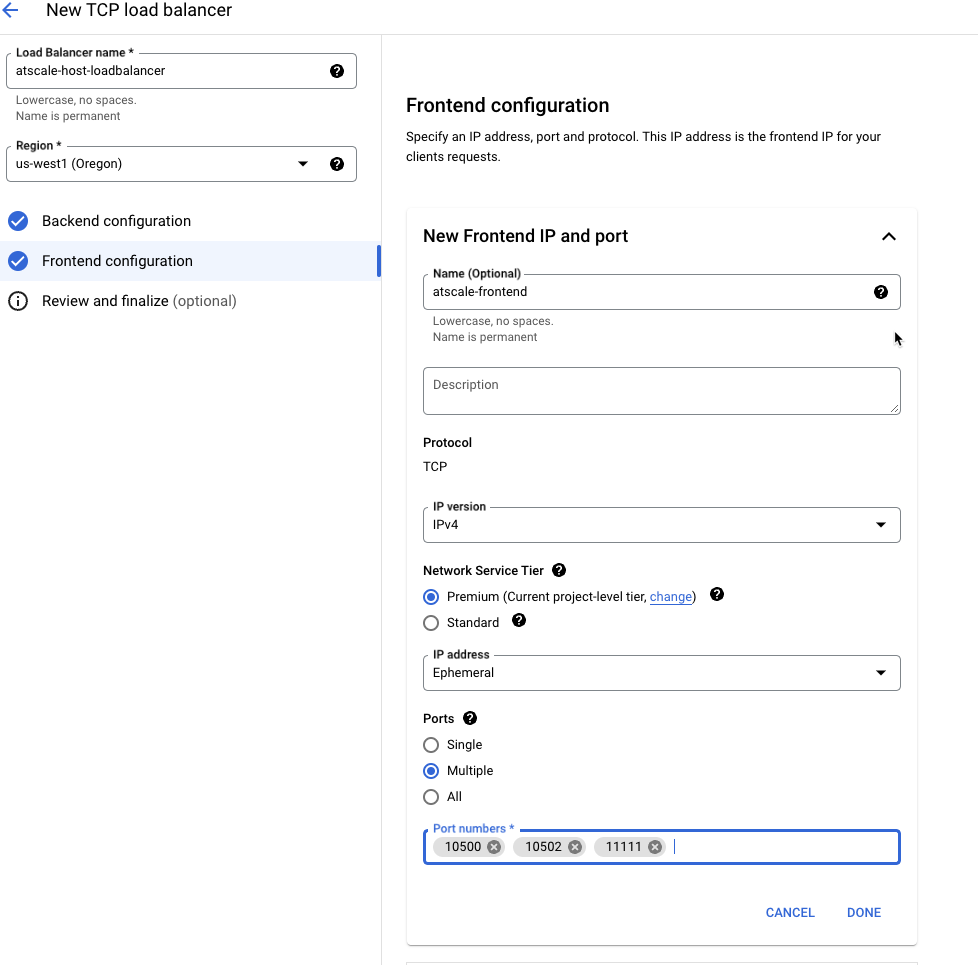

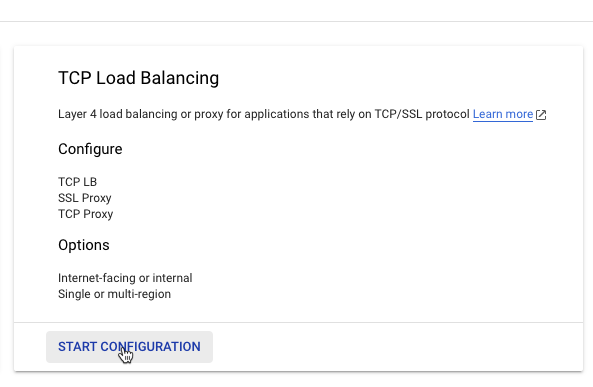

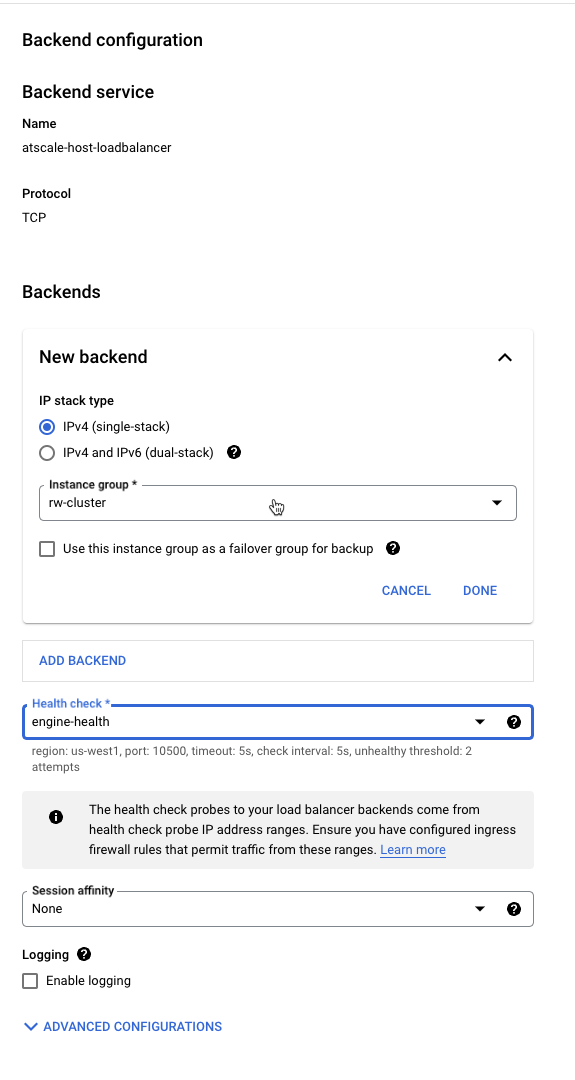

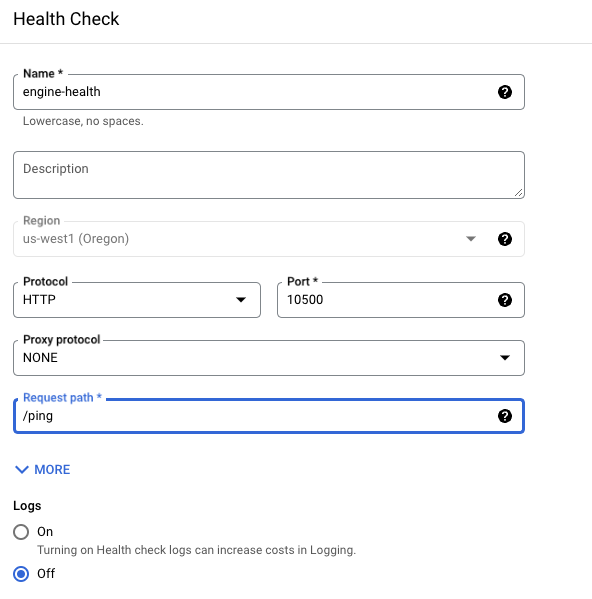

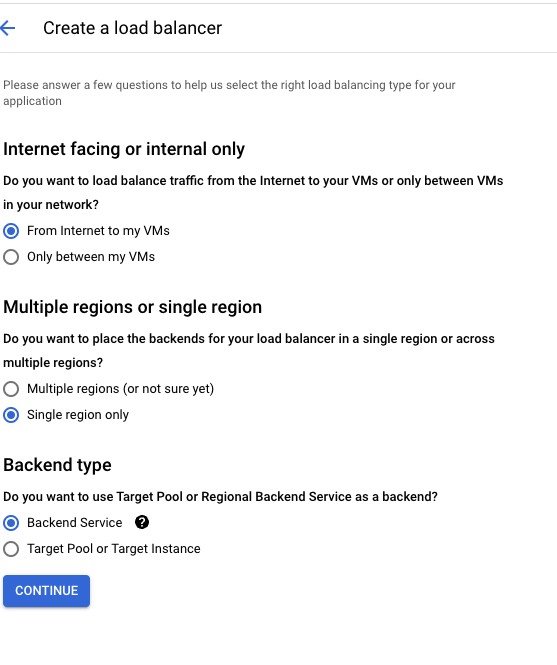

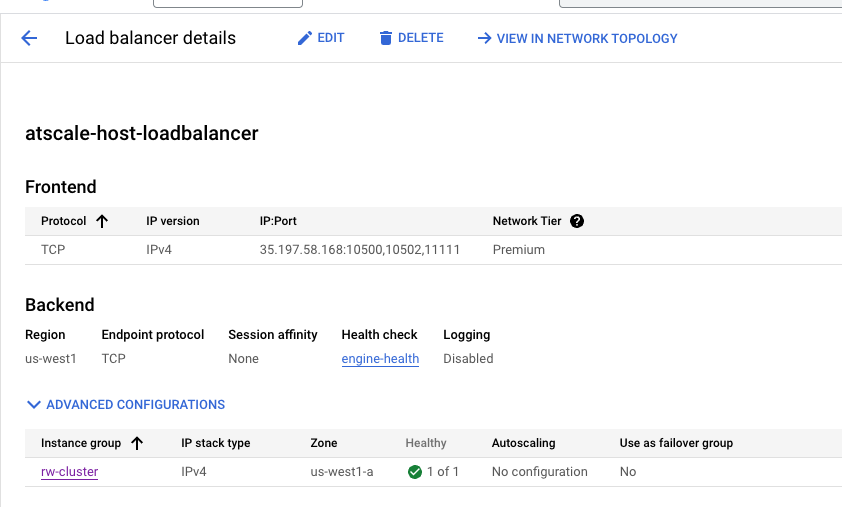

Create a Load Balancer
|
POST https://dev-compute.sandbox.googleapis.com/compute/beta/projects/atscale-sales-demo/regions/us-west1/healthChecks { "checkIntervalSec": 5, "description": "", "healthyThreshold": 2, "httpHealthCheck": { "host": "", "port": 10500, "proxyHeader": "NONE", "requestPath": "/ping" }, "name": "engine-health", "region": "projects/atscale-sales-demo/regions/us-west1", "timeoutSec": 5, "type": "HTTP", "unhealthyThreshold": 2 } POST https://compute.googleapis.com/compute/v1/projects/atscale-sales-demo/regions/us-west1/backendServices { "backends": [ { "balancingMode": "CONNECTION", "failover": false, "group": "projects/atscale-sales-demo/zones/us-west1-a/instanceGroups/rw-cluster" } ], "connectionDraining": { "drainingTimeoutSec": 300 }, "failoverPolicy": {}, "healthChecks": [ "projects/atscale-sales-demo/regions/us-west1/healthChecks/engine-health" ], "loadBalancingScheme": "EXTERNAL", "logConfig": { "enable": false }, "name": "atscale-host-loadbalancer", "protocol": "TCP", "region": "projects/atscale-sales-demo/regions/us-west1", "sessionAffinity": "NONE" } POST https://compute.googleapis.com/compute/v1/projects/atscale-sales-demo/regions/us-west1/forwardingRules { "IPProtocol": "TCP", "backendService": "projects/atscale-sales-demo/regions/us-west1/backendServices/atscale-host-loadbalancer", "description": "", "ipVersion": "IPV4", "loadBalancingScheme": "EXTERNAL", "name": "atscale-frontend", "networkTier": "PREMIUM", "ports": [ "10500", "10502", "11111" ], "region": "projects/atscale-sales-demo/regions/us-west1" } |
Set Up AtScale
Get the external IP address from your load balancer. If you already have a vanity name, then verify it.
|
nslookup 35.197.58.168 Server: 2001:558:feed::1 Address: 2001:558:feed::1#53 Non-authoritative answer: xxx.xxx.xxx5.in-addr.arpa name = 168.58.197.35.bc.googleusercontent.com. |

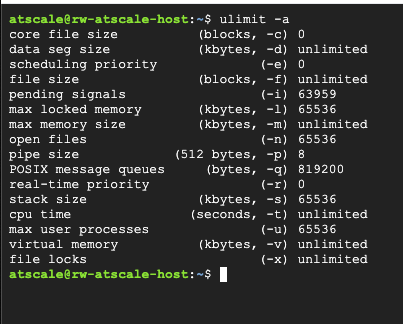

Download and install AtScale binary. Check ulimit for atscale user.
Configure AtScale
|
atscale@rw-atscale-host:~$ /opt/atscale/versions/2023.1.0.5837/bin/configurator.sh --first-time 2023-04-13 18:56:52: Starting configurator Generating /opt/atscale/conf/atscale.yaml... This will generate a basic atscale configuration using the following: Host: rw-atscale-host.us-west1-a.c.atscale-sales-demo.internal Service account: atscale Is this correct? (y/N) Y Generating configuration for current host... Archiving atscale config: /opt/atscale/data/config.history/atscale-20230413_185654.yaml Generating /opt/atscale/versions/2023.1.0.5837/conf/effective.yaml... local_hostname: rw-atscale-host.us-west1-a.c.atscale-sales-demo.internal user_config_filename: /opt/atscale/conf/atscale.yaml default_config_directory: /opt/atscale/versions/2023.1.0.5837/defaults roles_directory: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles Merging in defaults from role definitions... Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/servicecontrol/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/database/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/orchestrator_ui/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/agent/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/virtualization_listener/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/kibana/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/virtualization_worker/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/orchestrator/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/m3db/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/service_registry/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/datadash/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/message_exchange/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/metricsd/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/metadata_engine/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/virtualization_supervisor/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/ingress/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/supervisor/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/heartbeatsd/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/query_engine/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/opentelemetryd/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/virtualization/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/drivers/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/modeler/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/coordinator/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/engine/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/vault_agent/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/logsd/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/vault/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/message_bus/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/grafana/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/search_index/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/directory/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/egress/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/infraapi/vars/main.yml Merging file: /opt/atscale/versions/2023.1.0.5837/bin/configurator/roles/data_agent/vars/main.yml Merging in remaining defaults... Merging file: installer.yaml Merging global... Evaluating deprecated attributes... Assigning host... Merging host override service configs... {'coordinator': {'id': 12}} Extracting node meta information from the hostname... Generate installation parameters... Applying template installer/validate.template with /opt/atscale/versions/2023.1.0.5837/conf/effective.yaml... --- Atscale configuration ------------------------------------- Installation location ... : /opt/atscale Service account ......... : atscale App DNS name ........... : rw-atscale-host.us-west1-a.c.atscale-sales-demo.internal Engine DNS name ......... : rw-atscale-host.us-west1-a.c.atscale-sales-demo.internal --- TLS ------------------------------------------------------- Enabled ................. : False --- Kerberos -------------------------------------------------- Enabled ................. : False --- Hosts configuration --------------------------------------- FQDN ................ : rw-atscale-host.us-west1-a.c.atscale-sales-demo.internal Coordinator Host id .............. : 12 Services ............. : atscale, coordinator --- Current host ---------------------------------------------- Discovered hostname ..... : rw-atscale-host.us-west1-a.c.atscale-sales-demo.internal Found configuration ..... : Yes Services ................ : atscale, coordinator Ports: Modeler ............... : 10500 Engine ................ : 10502 Coordinator ........... : 10513 ---------------------------------------------------------------
Configuration OK. Generating installation scripts... Applying template installer/check-tls-configuration.sh.template with /opt/atscale/versions/2023.1.0.5837/conf/effective.yaml... Applying template installer/check-krb-configuration.sh.template with /opt/atscale/versions/2023.1.0.5837/conf/effective.yaml... Applying template installer/check-host.sh.template with /opt/atscale/versions/2023.1.0.5837/conf/effective.yaml... Verifying host configuration... PING rw-atscale-host.us-west1-a.c.atscale-sales-demo.internal (10.138.15.235) 56(84) bytes of data. 64 bytes from rw-atscale-host.us-west1-a.c.atscale-sales-demo.internal (10.138.15.235): icmp_seq=1 ttl=64 time=0.014 ms --- rw-atscale-host.us-west1-a.c.atscale-sales-demo.internal ping statistics --- 1 packets transmitted, 1 received, 0% packet loss, time 0ms rtt min/avg/max/mdev = 0.014/0.014/0.014/0.000 ms Hosts are reachable. Verifying TLS configuration... TLS is disabled, nothing to validate. Verifying Kerberos configuration... Kerberos is disabled, nothing to validate. Do you wish to apply this configuration? (y/N): N Aborting. 2023-04-13 18:57:00: Configurator finished, RET=1 |
Answer Yes first to generate a default YAML file and No afterward to update the file.

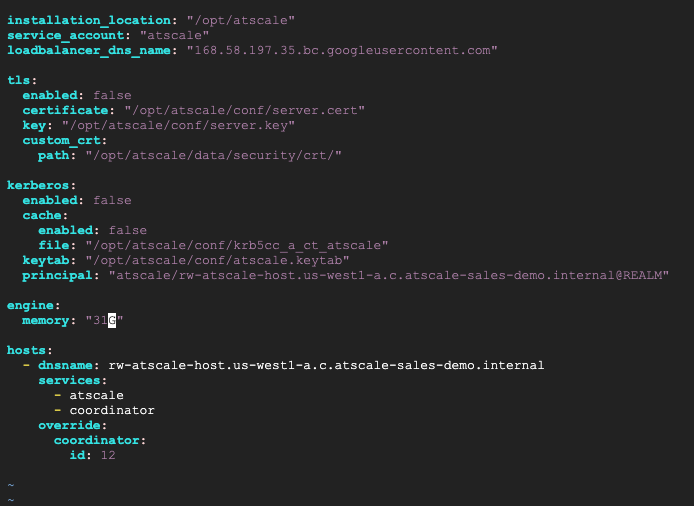

Edit atscale.yaml:
Update the load balancer to the NLB name and engine memory. The load balancer name is 168.58.197.35.bc.googleusercontent.com.
Rerun the following configurator and respond with Y:
/opt/atscale/versions/2023.1.0.5837/bin/configurator.sh --first-time
|
Load engine_settings... Setting: auth.scheme = http Setting: modeler.scheme = http Setting: agent.port = 10525 Setting: auth.host = 168.58.197.35.bc.googleusercontent.com Setting: auth.port = 10503 Setting: modeler.host = 168.58.197.35.bc.googleusercontent.com Setting: modeler.port = 10500 Setting: http.port = 10502 Setting: atscale.host = 168.58.197.35.bc.googleusercontent.com Setting: cluster.zookeeper.connectionString = rw-atscale-host.us-west1-a.c.atscale-sales-demo.internal:10513 Setting: cluster.zookeeper.basePath = /atscale Setting: cluster.zookeeper.encryptedPassword = s59446c445a6d3437553051714e5635526547566563773d3d Setting: kerberos.client.enabled = false Setting: kerberos.service = Setting: kerberos.host = Setting: kerberos.domain = Setting: kerberos.keytab = Setting: ssl.enabled = false Setting: ssl.keystore.path = Setting: ssl.keystore.password = Setting: dataloader.srcDir = /opt/atscale/data/dataloader Setting: atscale.extensions.path = /opt/atscale/extensions Enabling engine... engine: added process group Waiting for engine ........... Waited 18s. Done. 2023-04-13 19:03:55: Configurator finished, RET=0 |

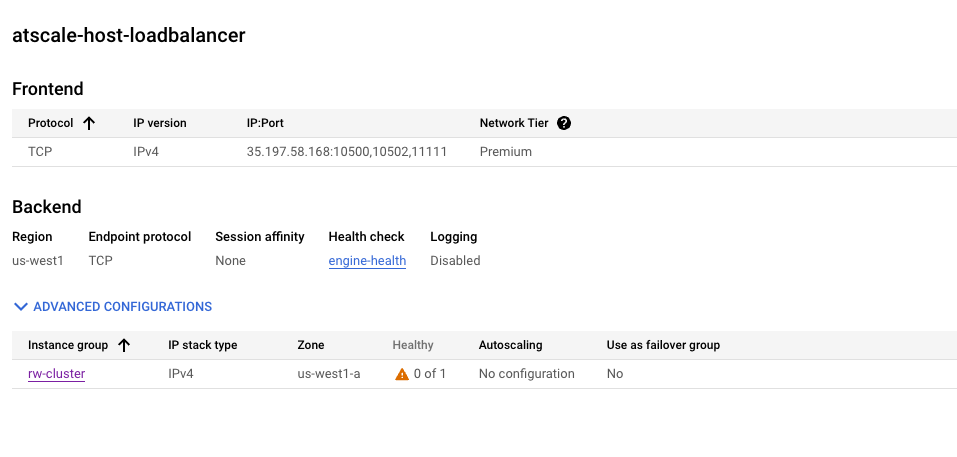

Verify a Load Balancer
After completing the installation, update /etc/hosts to map the network load balancing name (NLB) to the localhost IP address:
|
root@rw-atscale-host:~# ip addr 1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000 link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00 inet 127.0.0.1/8 scope host lo valid_lft forever preferred_lft forever inet6 ::1/128 scope host valid_lft forever preferred_lft forever 2: ens4: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1460 qdisc mq state UP group default qlen 1000 link/ether 42:01:0a:8a:0f:eb brd ff:ff:ff:ff:ff:ff altname enp0s4 inet 10.138.15.235/32 scope global dynamic ens4 valid_lft 2902sec preferred_lft 2902sec inet6 fe80::4001:aff:fe8a:feb/64 scope link valid_lft forever preferred_lft forever |

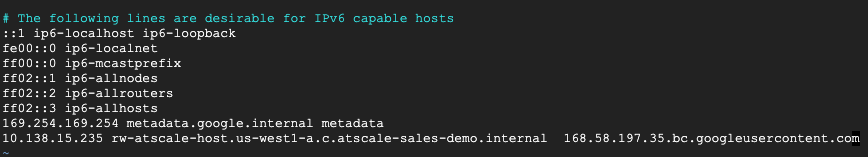

Edit /etc/hosts:

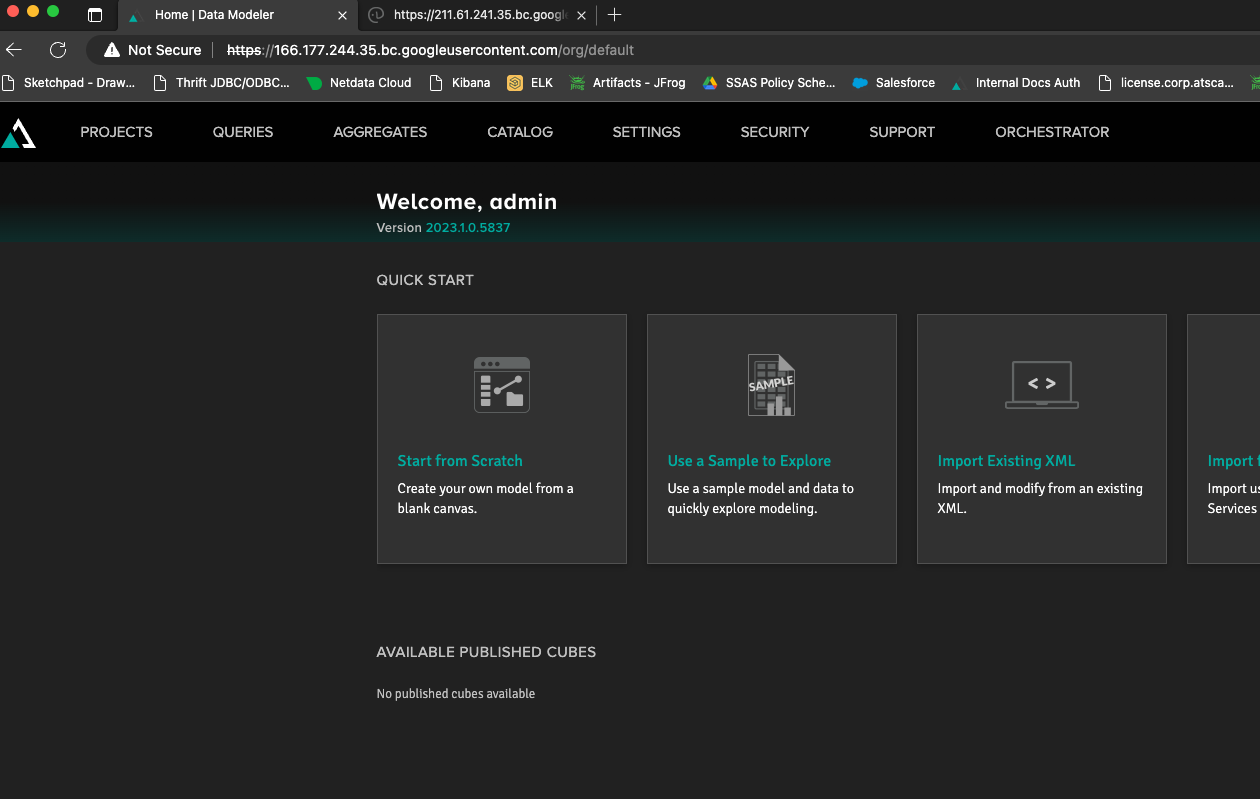

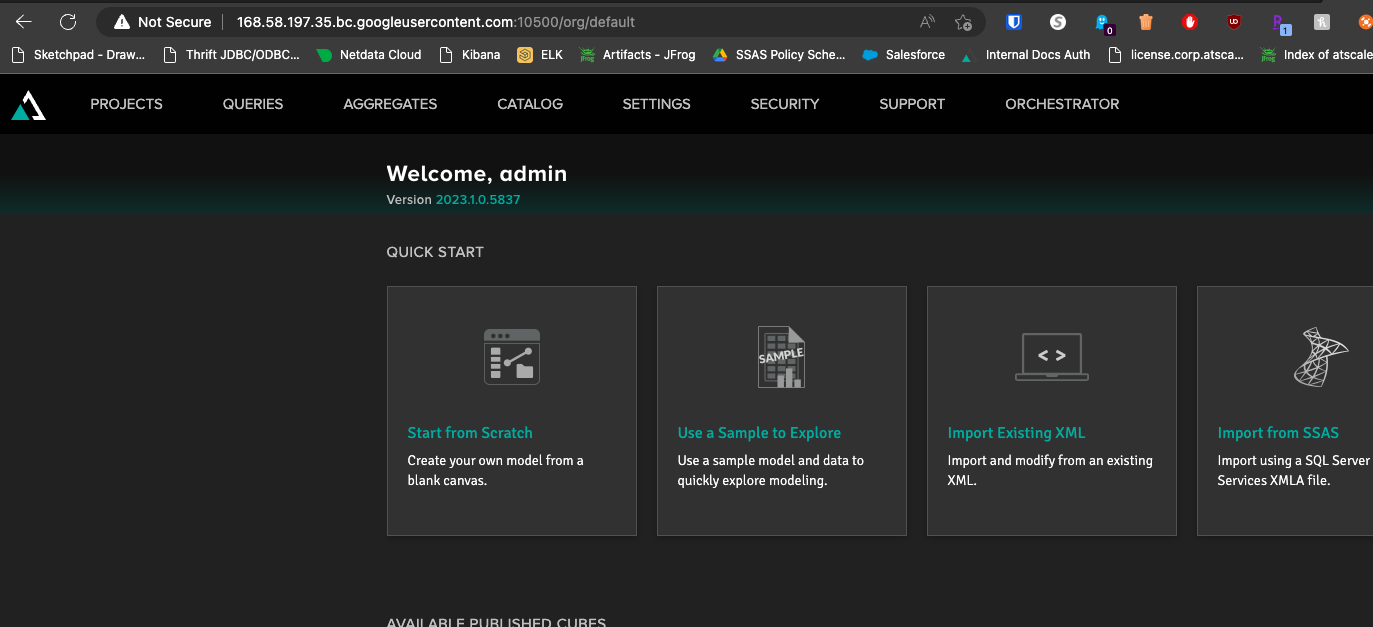

Connect to the AtScale URL, and add the license key:
Terminate a Load Balancer

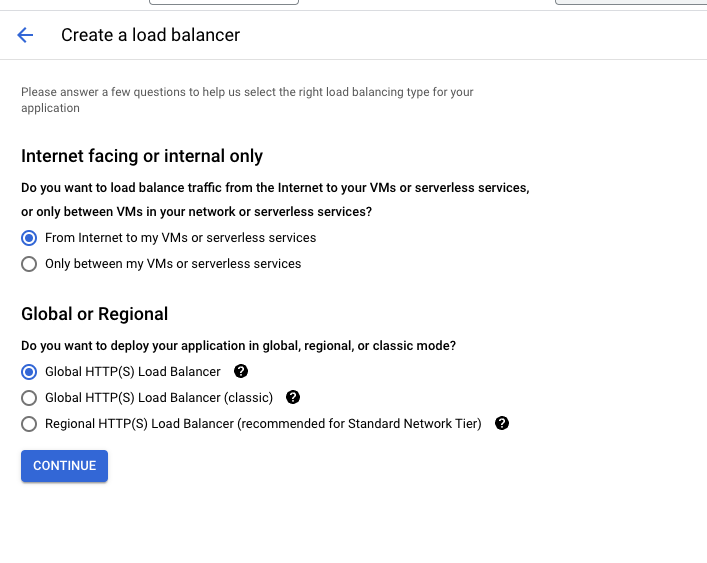

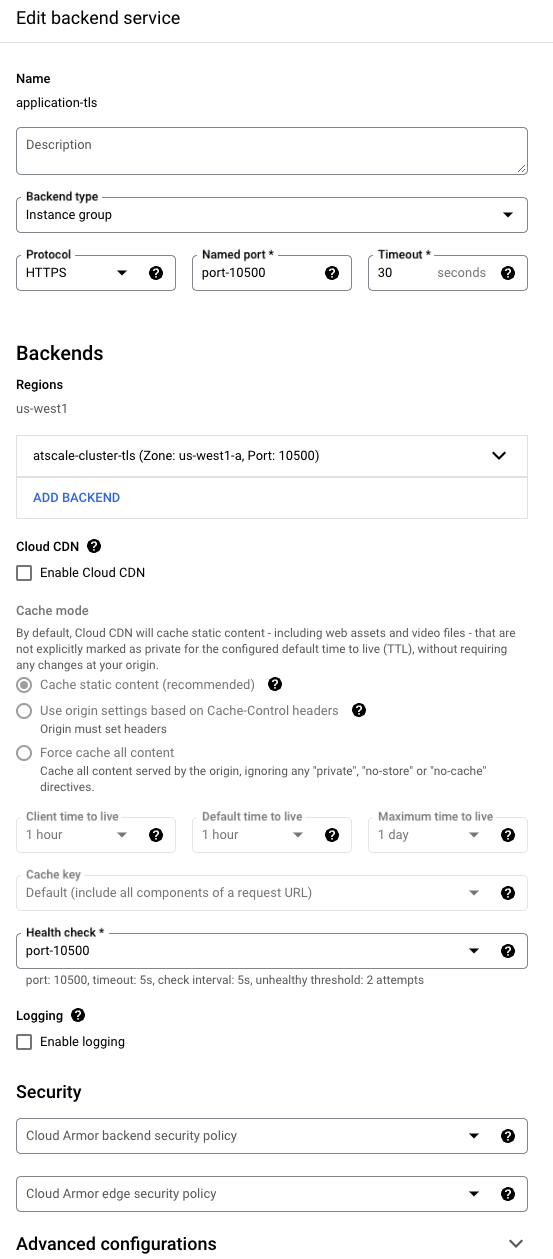

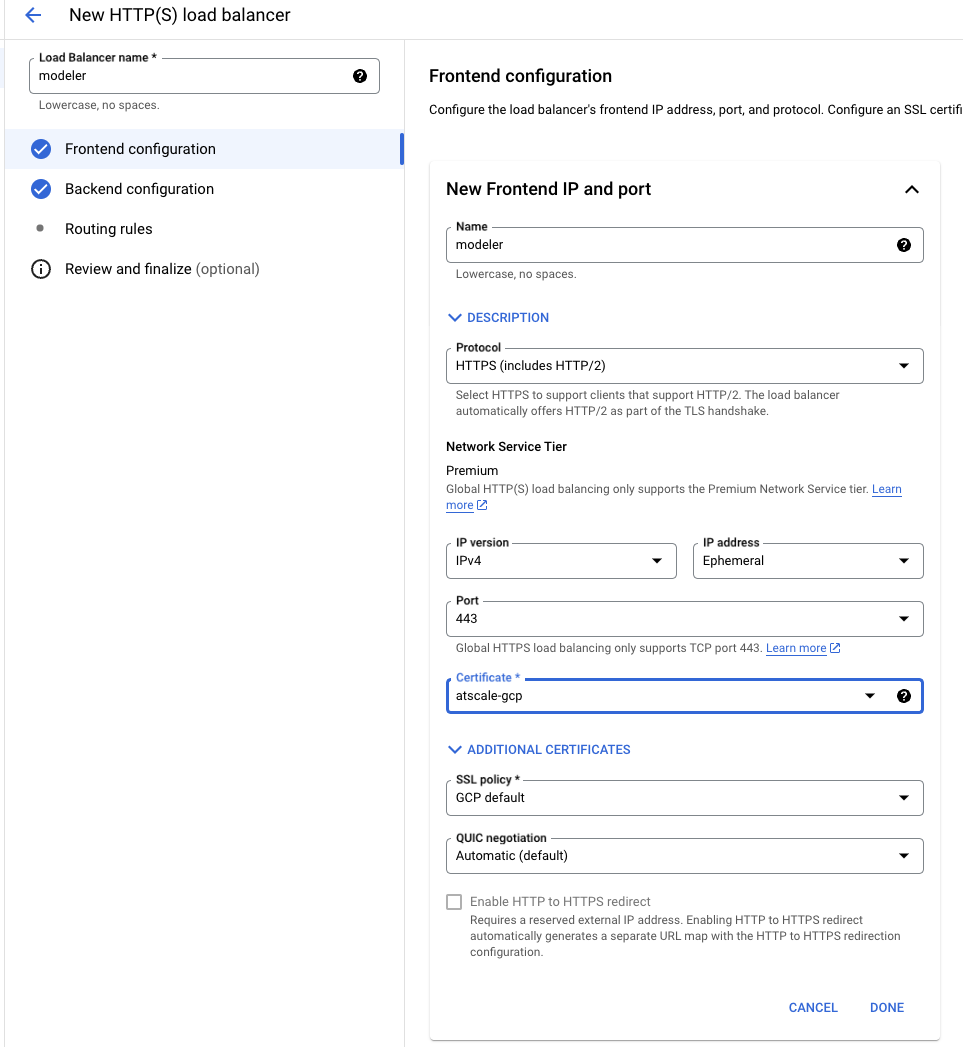

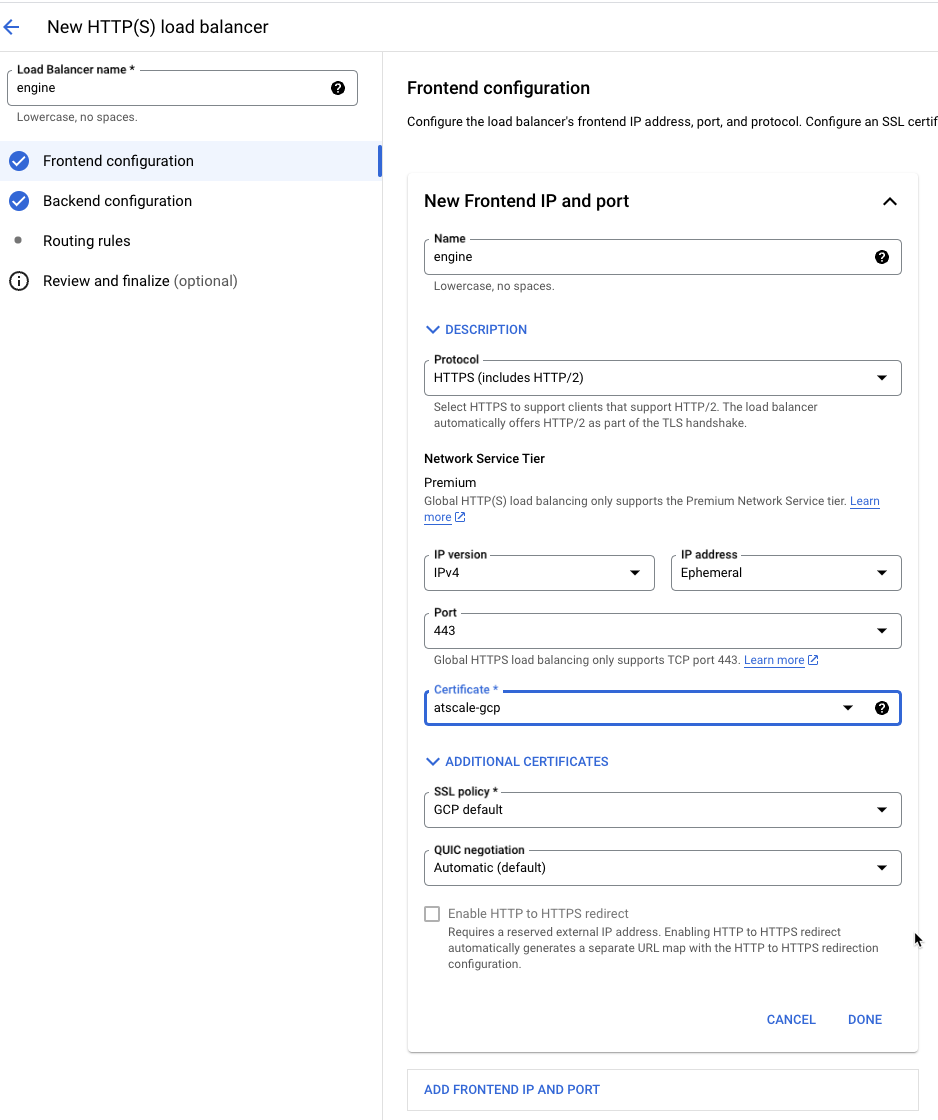

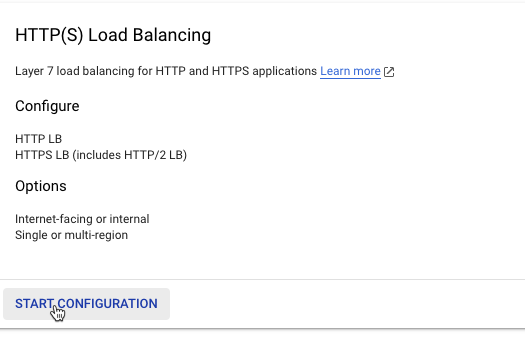

Use secure socket layer protocol to create a new load balancer; it has to be multiregional. AtScale only accepts HTTP/HTTPS when a load balancer needs to be terminated.
Update atscale.yaml and then the load balancer. Run the configurator again:
|
installation_location: "/opt/atscale" service_account: "atscale" loadbalancer_dns_name: "166.177.244.35.bc.googleusercontent.com" tls: enabled: false certificate: "/opt/atscale/conf/server.cert" key: "/opt/atscale/conf/server.key" custom_crt: path: "/opt/atscale/data/security/crt/" kerberos: enabled: false cache: enabled: false file: "/opt/atscale/conf/krb5cc_a_ct_atscale" keytab: "/opt/atscale/conf/atscale.keytab" principal: "atscale/rw-atscale-host.us-west1-a.c.atscale-sales-demo.internal@REALM" engine: memory: "31G" hosts: - dnsname: rw-atscale-host.us-west1-a.c.atscale-sales-demo.internal services: - atscale - coordinator override: coordinator: id: 12 external: engine: load_balancer_url: https://211.61.241.35.bc.googleusercontent.com apps: load_balancer_url: https://166.177.244.35.bc.googleusercontent.com sql: load_balancer_url: http://168.58.197.35.bc.googleusercontent.com:11111 mdx: load_balancer_url: https://211.61.241.35.bc.googleusercontent.com modeler: load_balancer_url: https://166.177.244.35.bc.googleusercontent.com |
/opt/atscale/versions/current/bin/configurator.sh --apply:
|
Load engine_settings... Setting: auth.scheme = http Setting: modeler.scheme = http Setting: agent.port = 10525 Setting: auth.host = 166.177.244.35.bc.googleusercontent.com Setting: auth.port = 10503 Setting: modeler.host = 166.177.244.35.bc.googleusercontent.com Setting: modeler.port = 10500 Setting: http.port = 10502 Setting: atscale.host = 166.177.244.35.bc.googleusercontent.com Setting: cluster.zookeeper.connectionString = rw-atscale-host.us-west1-a.c.atscale-sales-demo.internal:10513 Setting: cluster.zookeeper.basePath = /atscale Setting: cluster.zookeeper.encryptedPassword = s59446c445a6d3437553051714e5635526547566563773d3d Setting: kerberos.client.enabled = false Setting: kerberos.service = Setting: kerberos.host = Setting: kerberos.domain = Setting: kerberos.keytab = Setting: ssl.enabled = false Setting: ssl.keystore.path = Setting: ssl.keystore.password = Setting: dataloader.srcDir = /opt/atscale/data/dataloader Setting: atscale.extensions.path = /opt/atscale/extensions Enabling engine... engine: added process group Waiting for engine .......... Waited 16s. Done. |
